Resistron accessories

ATR - ANALOG TEMPERATURE DISPLAY 300°C OR 500°C

Art. Nr. 882130 0..300 C

Art. Nr. 882150 0..500 C

Analog temperature meter to be mounted into control panel. Zero calibration af "Z" available for temperature range of 0-300ºC and 0-500°C

DTR - DIGITAL TEMPERATURE DISPLAY 300°C OR 500°C

Art. Nr. 882233 0..300 C
Art. Nr. 882253 0..500 C

Digital temperature meter to be mounted into control panel. Available for temperature range of 0-300ºC and 0-500°

P3D/P5D - POTENTIOMETER TO SETPOINT ADJUSTMENT 300°C OR 500°C

Art. Nr. 881103 0..300 C

Art. Nr. 881105 0..500 C

Digital potentiometer with dial for temperature setting. The value selected on the dial is the temperature in °C

PEX-W4 - CURRENT TRAFO

Art. Nr. 885106

The supplied current transformer is an integral part of the control system.

Only the original current transformer my be used. UL approved

BOOSTER B-075400 - RESISTRON CONTROLLER

Art. Nr. 885301

External switching amplifier, necessary for high primary currents. (continuous >45A, pulse current > 75A 60% duty ciycle
DIN-rail mount

LINE FILTER (LF-6480)

Art. Nr. 885500

LINE FILTER (LF-35480)

Art. Nr. 885506

Essential in order to ensure CE conformity. Optimized for the RESISTRON temperature controller

Line filter, prerequisite for Ropex controller to conform with CE-Label

LF-06: Operating current 6A, 480VAC

LF-35: Operating current 35A, 480VAC

Electrical connection: by´clamps or soldering

MONITORING UNIT (MSW)
Art. Nr. 885211

For detecting frame short-circuits on the heatsealing band. Used as an alternative to the standard PEX-W2 current transformer.

Supervising fault current transformer, monitoring unit MSW-1

Reduces the danger of heatseal band overheating

DIN-ADAPTOR (HS)

Art. Nr. 887001

DIN-adaptor, for panel mount units (DIN-rail TS 35)
Designed to fit RES-420/440/445 controllers HS-adaptor

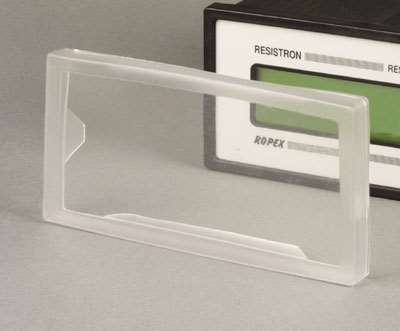

FLEXIBLE SOFT FRONT COVER
Art. Nr. 887000

Designed to fit RES-420/440/445 controllers
Flexible cover protects screen and keypad
Easily cleaned

Economically replaceable

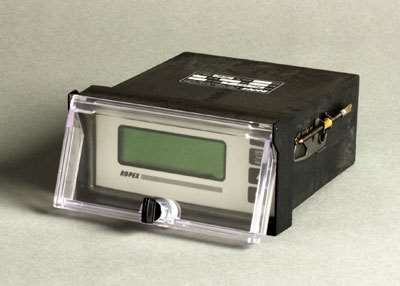

HINGED GARD FRONT COVER
Art. nr. 887102

Designed to fit RES-420/440/445 control units
Hard cover protects screen and keypad

Latch to hold closed

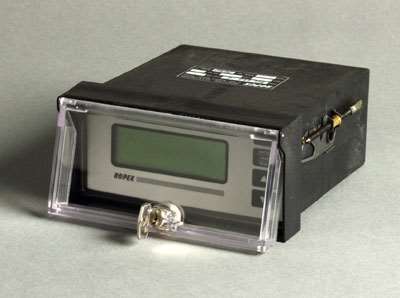

HINGED GARD FRONT COVER (Lock)
Art. Nr. 887101

Designed to fit RES-420/440/445 controllers
Hard cover protects screen and keypad

Keypad lockout

COMMUNICATION INTERFACE CI-USB-1
Art. Nr. 885650
Interface for connecting a RESISTRON/CIRUS temperature controller with diagnostic interface (DIAG) to the PC (USB port).

Associated PC visualization software for displaying setting and configuration data, and for recording SET and ACTUAL temperatures in real time.

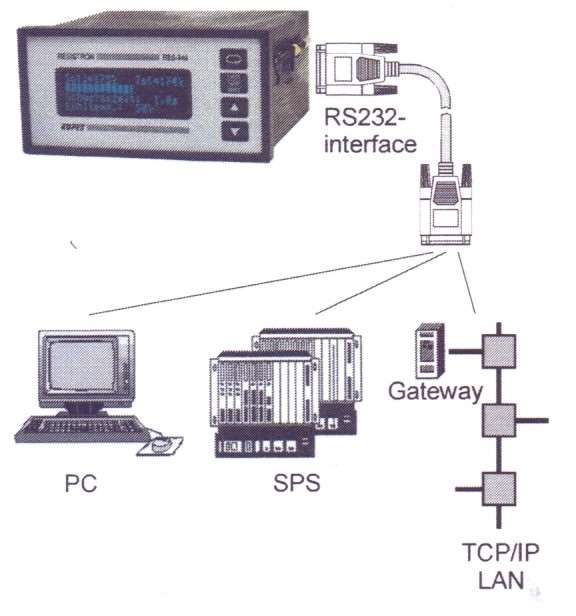

SERIAL INTERFACE RS-232 (MOD 33)

Art. Nr. 884202
Isolated RS-232 interface for the temperature controller RES-420/-440/-445 and UPT/LPT-640.
Output of the ACTUAL temperature (with timestamp) during the heatsealing cycle.
At the end of the heatsealing cycle the configuration of the controller is transmitted.

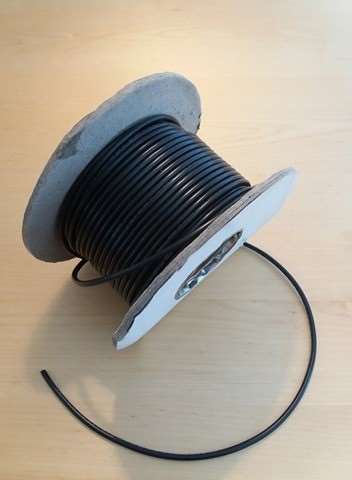

MEASUREMENT CABLE UML-1
Art. Nr. 884251

Twisted measurement cable for UR-voltage measurement. Halogene and silicone free, trailing cable.

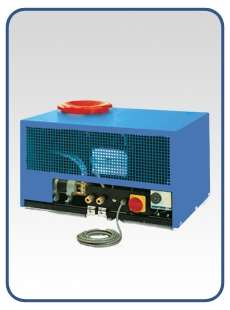

WATER COOLING APPLIANCE

Art. Nr. 883454

Housing made of electrolytically galvanized sheet steel

Powder coated, abrasion resistant, scratch-resistant,

resistant to water, solvents, coolants and hydraulic oils.

Easily removable cover.

PE-insulated tank.

Easy filling of water tanks from the outside.
Small centrifugal pump (Speck).
Electromechanical thermostat for temperature control VDE regulations of industrial plants.

All systems tested according to VDE 0113: insulation test,

high voltage testing, protective conductor contact resistance.
