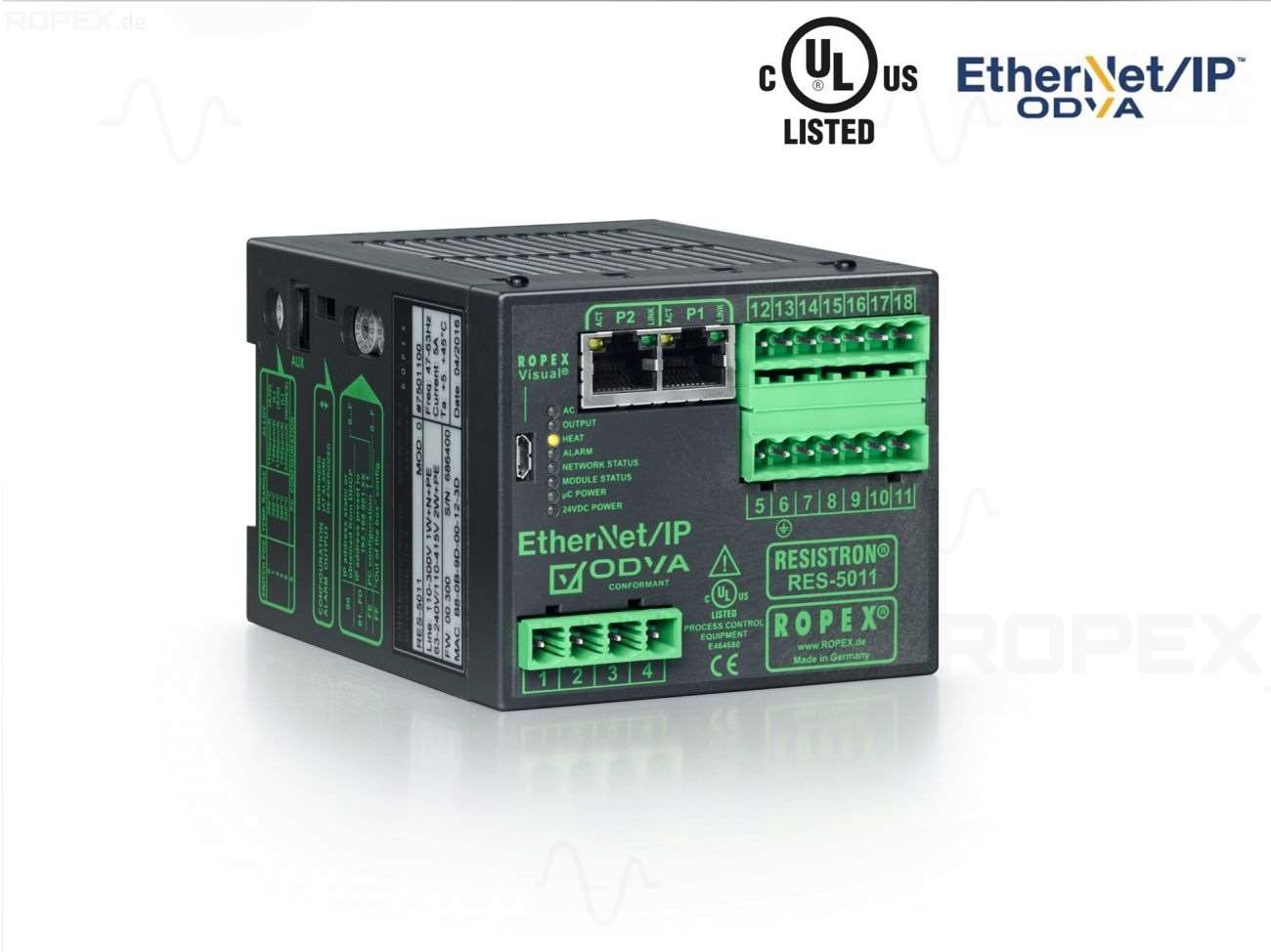

RESISTRON RES-5011 (Ethernet/IP)

​Standard functions:

• Automatic zero calibration (AUTOCAL)
• Automatic optimization (AUTOTUNE)
• Automatic phase angle compensation (AUTOCOMP)
• Automatic frequency adjustment
• Diagnostic tool (ROPEXvisual® diagnostic interface)

Important features:

• EtherNet/IP interface for controlling all controller functions (2 x RJ-45)
• Booster output
• Electrically isolated 0…10 VDC analog output for ACTUAL temperature
• Heat sealing band alloy and temperature range (max. 500 °C) selectable
• Fault output and indication (LED) with error diagnostics
• UL certification
